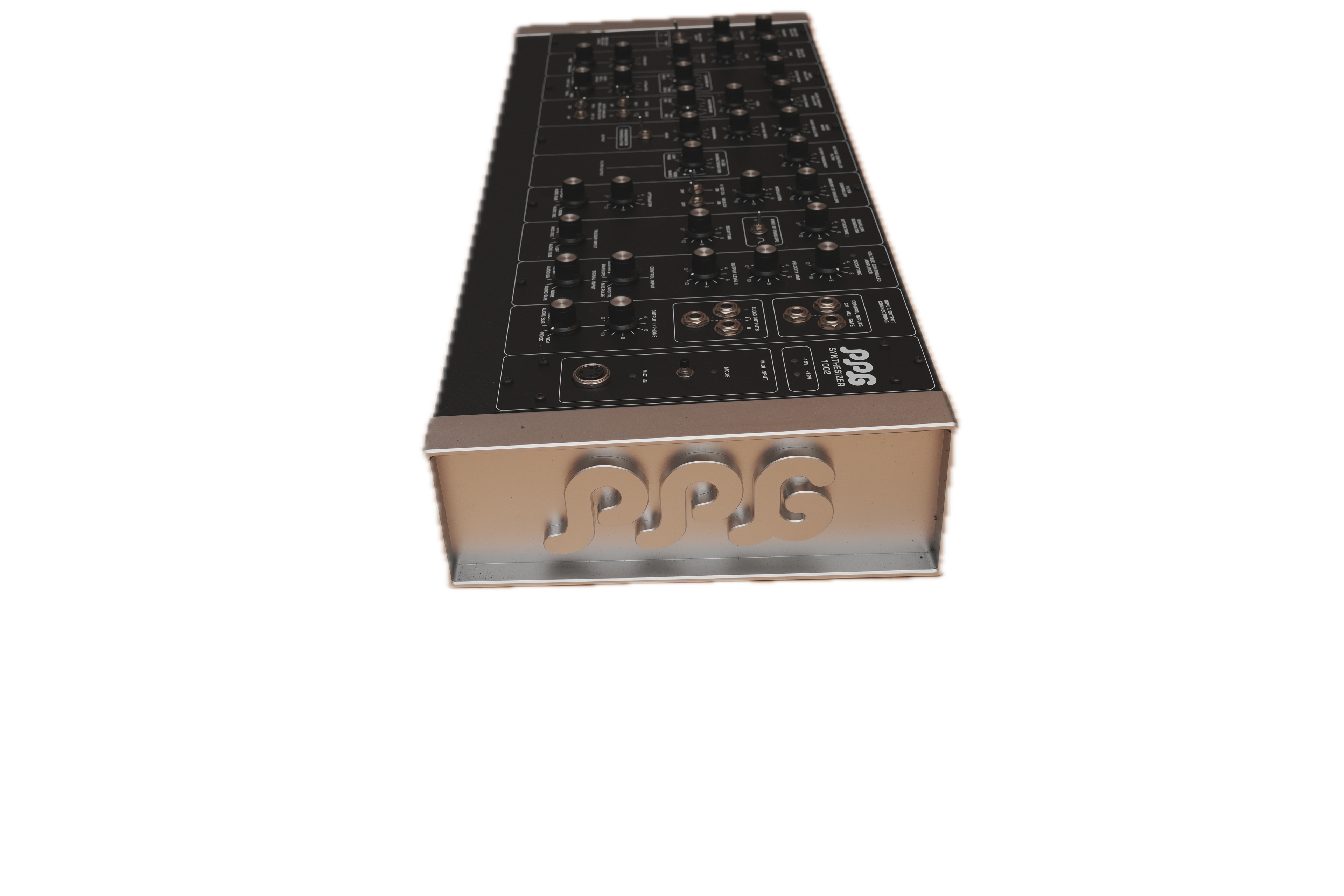

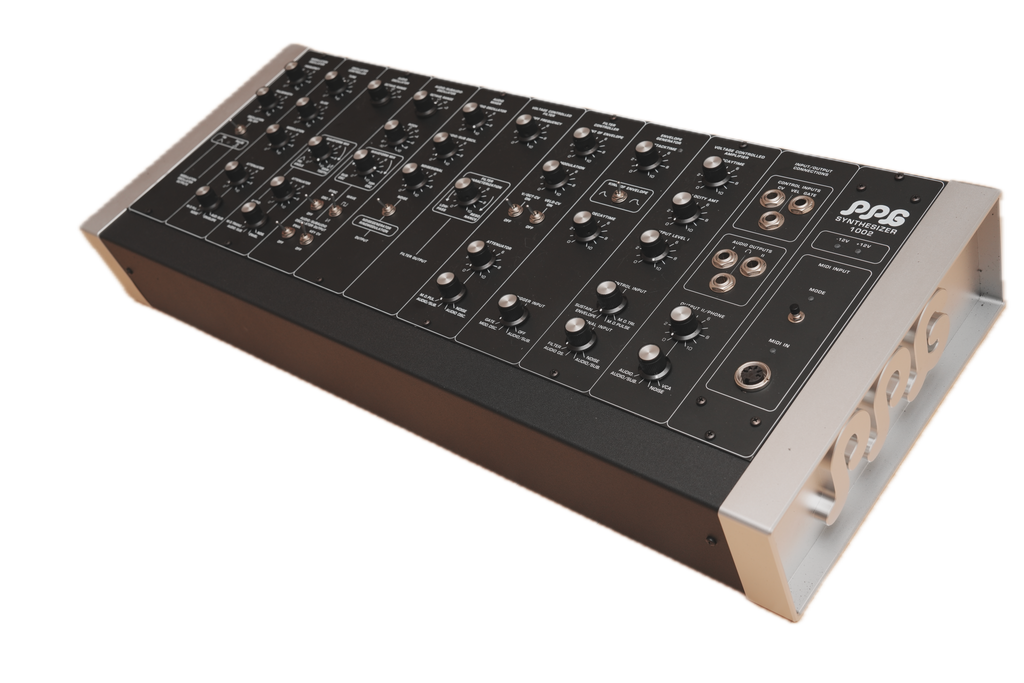

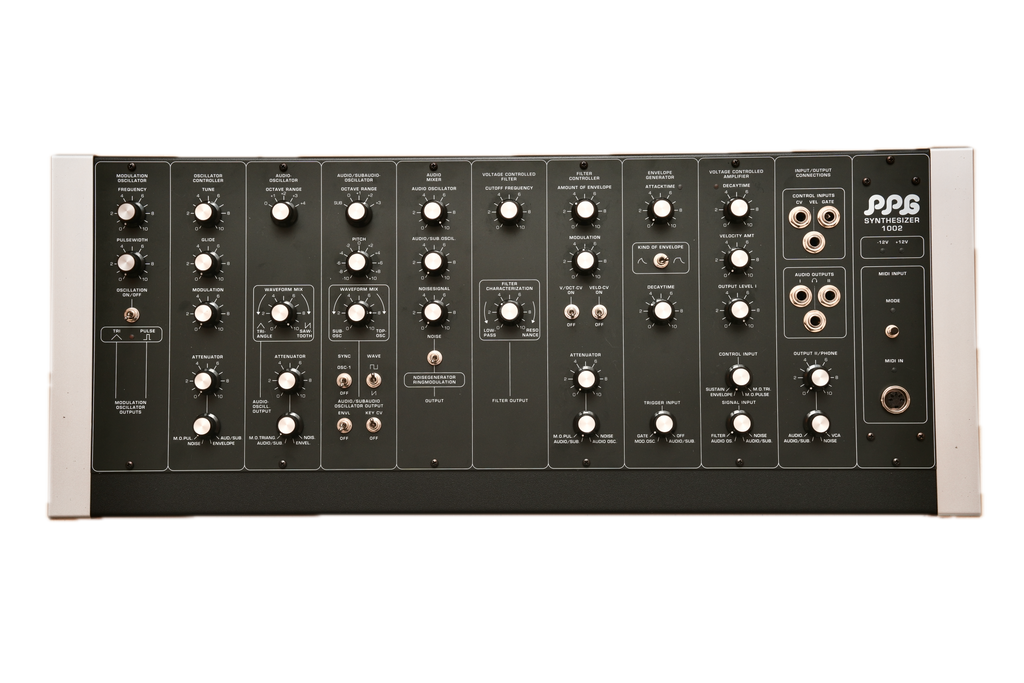

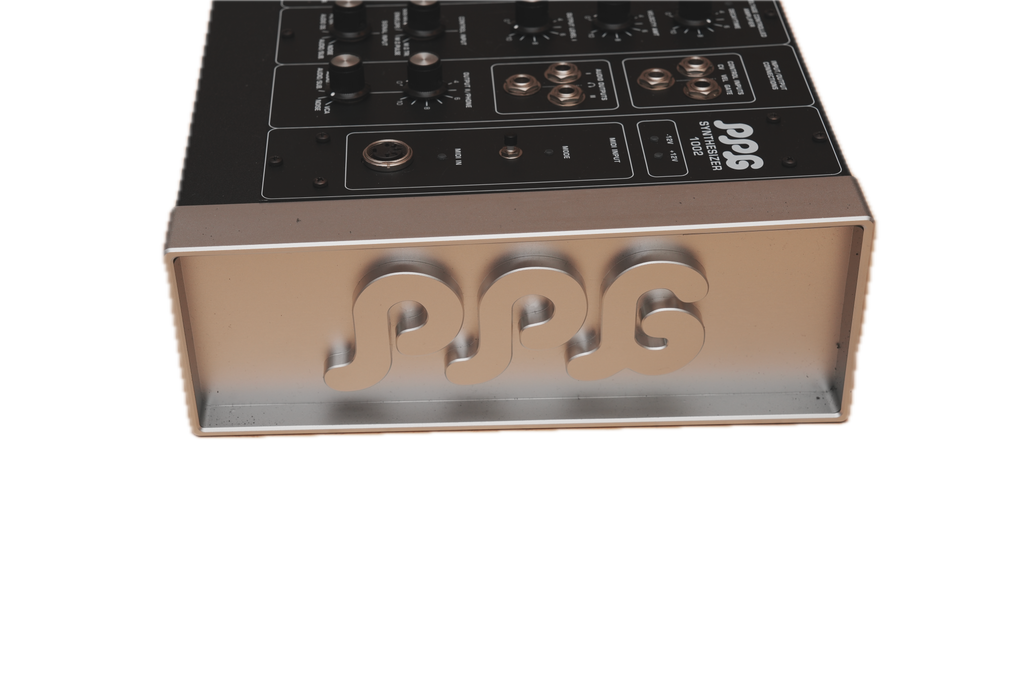

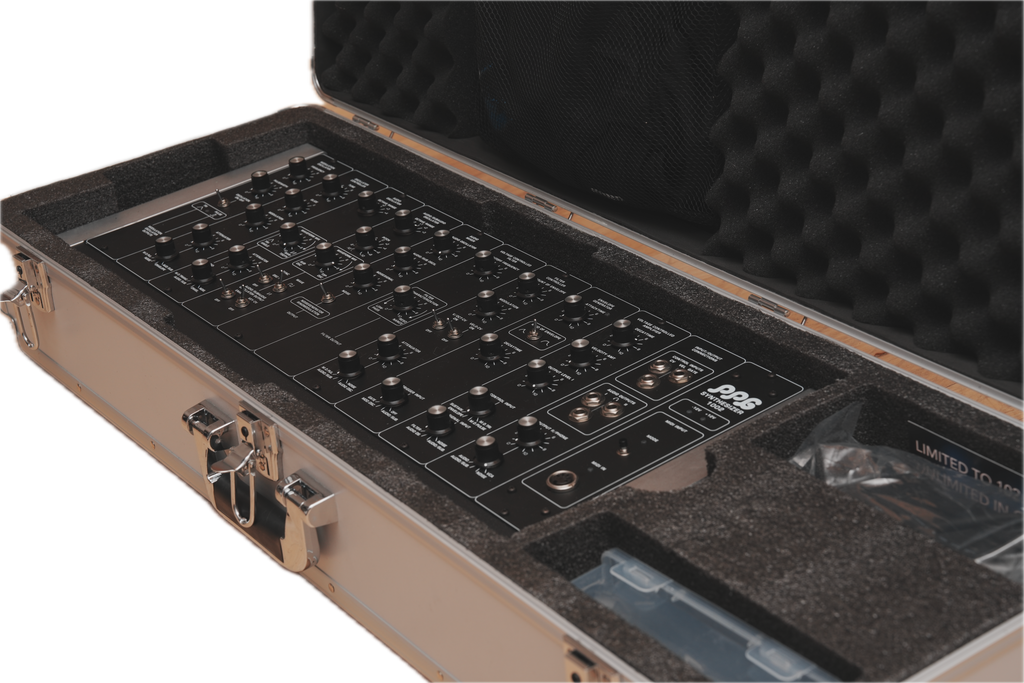

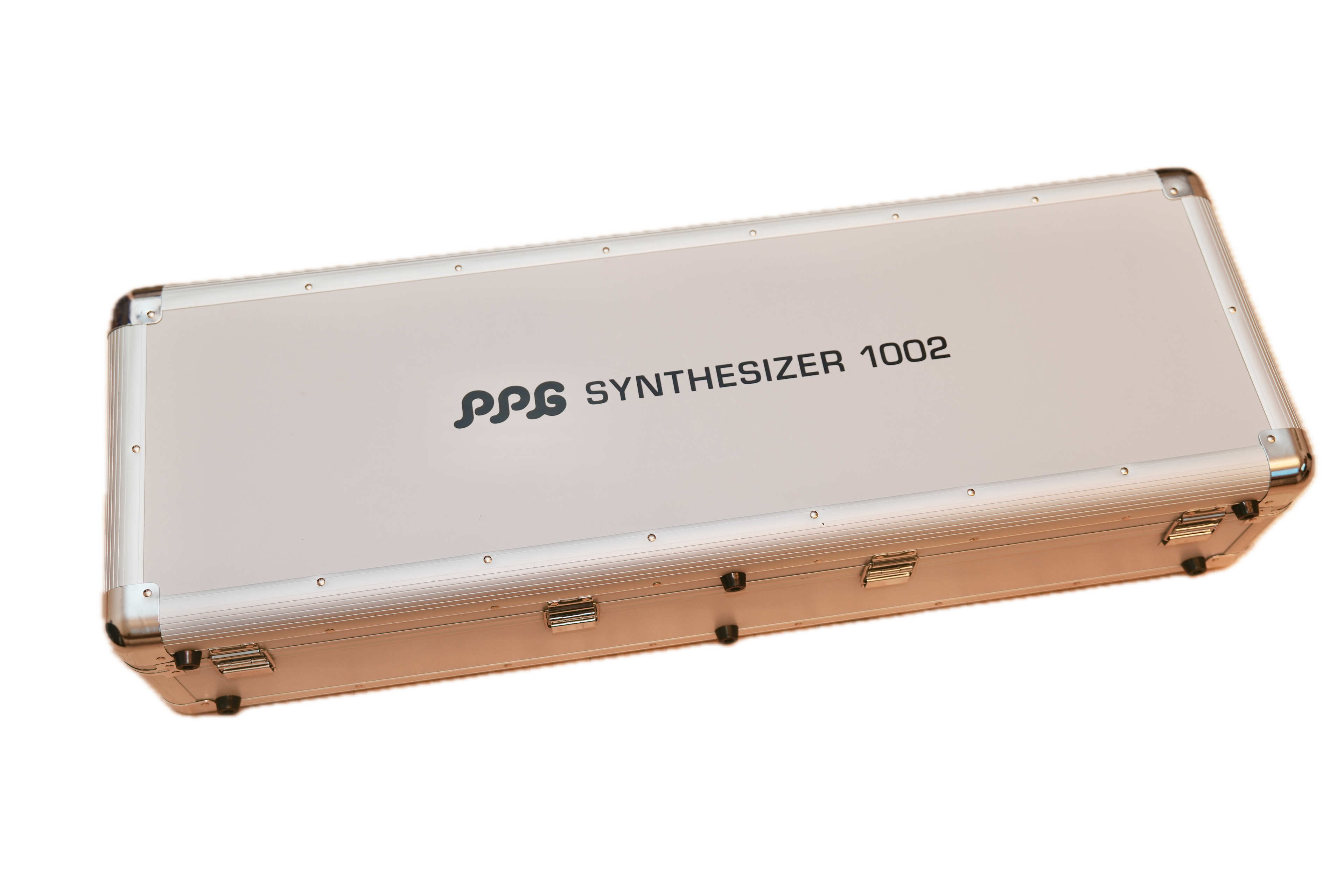

PPG 1002 Mk2

Born from Wolfgang Palm's original hand-scribbled blueprints, the PPG 1002 is back. Not "inspired by". Not "close enough". This is an official reissue, rebuilt with surgical precision and a frankly unreasonable level of care.

Limited edition. Fully analog. The real circuitry, the real bite, the real PPG magic, resurrected for musicians who actually use their gear and collectors who know exactly what this is.

And no, it's not the old keyboard format. This one arrives in the proper classic console-style housing, true to the original 1002 design language, ready to sit front and center like it owns the room.

A piece of synth history

The original PPG 1002 was one of the last fully analog synthesizers Wolfgang Palm ever built. Introduced in the mid-1970s, it was a portable, monophonic analog machine made in tiny numbers, and it laid the groundwork for everything that followed: the PPG 360, the Wave 2, the Wave 2.2, and the wavetable synthesis that made PPG a legend. Only around two dozen originals were ever made, and barely a handful still work today. For decades, owning a real 1002 was close to impossible.

The Mk2 changes that. Wolfgang Palm joined forces with Cornel Hecht and the Liquid Sky collective to recreate the 1002 faithfully, with new components, modern reliability and a warranty, so this rare voice can finally live in your studio instead of a museum.

Faithful to the original, built for today

The Mk2 recreates the original circuit design, then adds the few things a modern studio actually needs:

• MIDI and CV/gate with velocity, so it plays nicely with the rest of your rig
• A square wave and oscillator sync on oscillator 2, expanding the original palette
• Rock-solid modern components for stability the 1970s could only dream of
• Console-style desktop housing instead of the original keyboard, so it drops straight onto your desk

Everything that made the original sing is intact: the 24dB low-pass filter, the temperature-compensated oscillators, the raw analog character. Nothing sampled, nothing modelled. Just real analog circuitry doing what it has always done.

Specifications

• 2 analog oscillators with transpose switches and mixable waveforms from triangle to saw
• Oscillator 2 also offers square wave and a sub-oscillator
• Oscillator 2 can be synchronized
• Noise generator for audio and modulation
• A ring modulator can be switched on instead of the noise generator
• Routable LFO with pulse and triangle waveforms
• 24dB low-pass filter with resonance
• Voltage-controlled amplifier
• 2 easy edit envelopes
• Switchable modulators for each module, allowing for an almost modular-like routing
• CV and MIDI inputs
• External precision low noise power supply

Frequently asked questions

What is the PPG 1002 Mk2?
It is an official, handcrafted reissue of Wolfgang Palm's rare PPG 1002 analog synthesizer from the 1970s, rebuilt with modern components, MIDI and CV, in a console-style desktop housing.

Is it fully analog?
Yes. The 1002 Mk2 is a fully analog, monophonic synthesizer. Nothing digital, nothing modelled.

How many were made?
The Mk2 is a strictly limited run of 102 handcrafted units worldwide.

How is it different from the original 1002?
It faithfully recreates the original circuitry, then adds MIDI and CV/gate with velocity, a square wave and sync on oscillator 2, modern stability, and a console-style desktop format in place of the original keyboard.

Does it have a keyboard?
No. The Mk2 is a desktop instrument in classic console-style housing, controlled over MIDI or CV.

Own a piece of music history. When the 102 are gone, they are gone.
