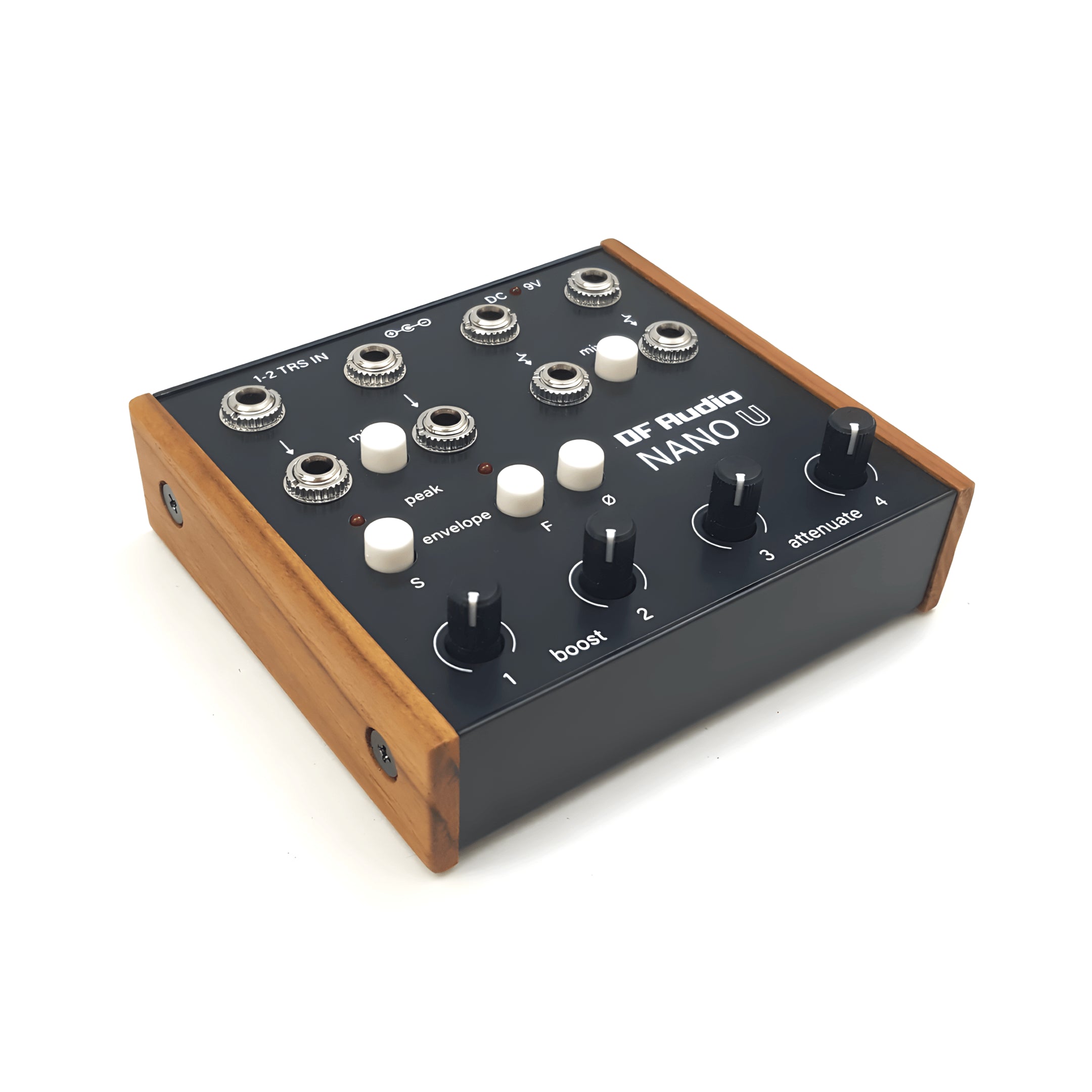

DF Audio Nano U

NANO U is a standalone utility kit designed to expand the functionality of semi-modular synths, as well as being a useful addition to fully modular setups.

It features boosting circuits for bringing line-level audio up to eurorack level; envelope followers for converting audio into CV signals; DC-coupled buffered attenuators which work with both audio and CV signals; mix/split functionality, and a CV offset generator.

• DESCRIPTION: Standalone utility module

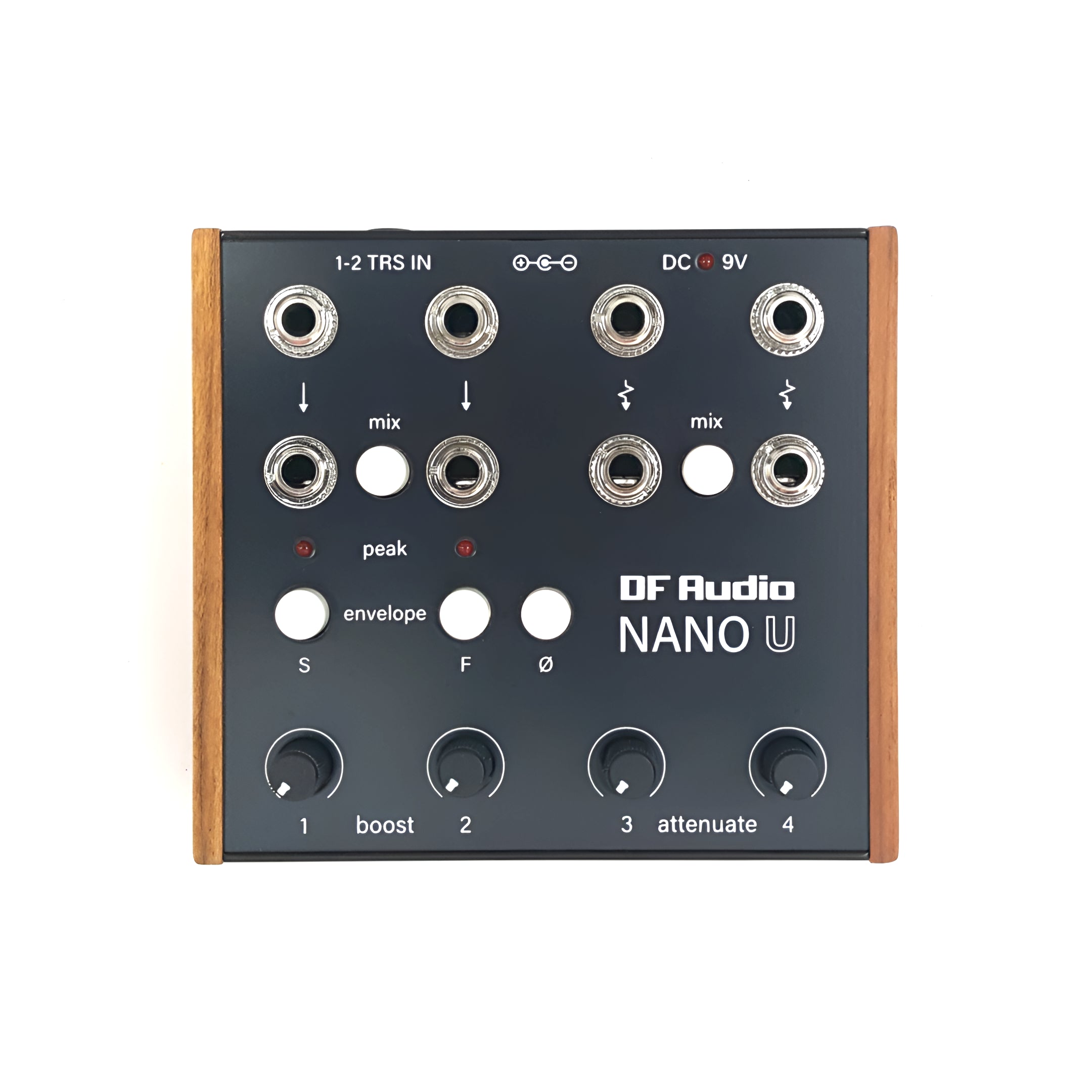

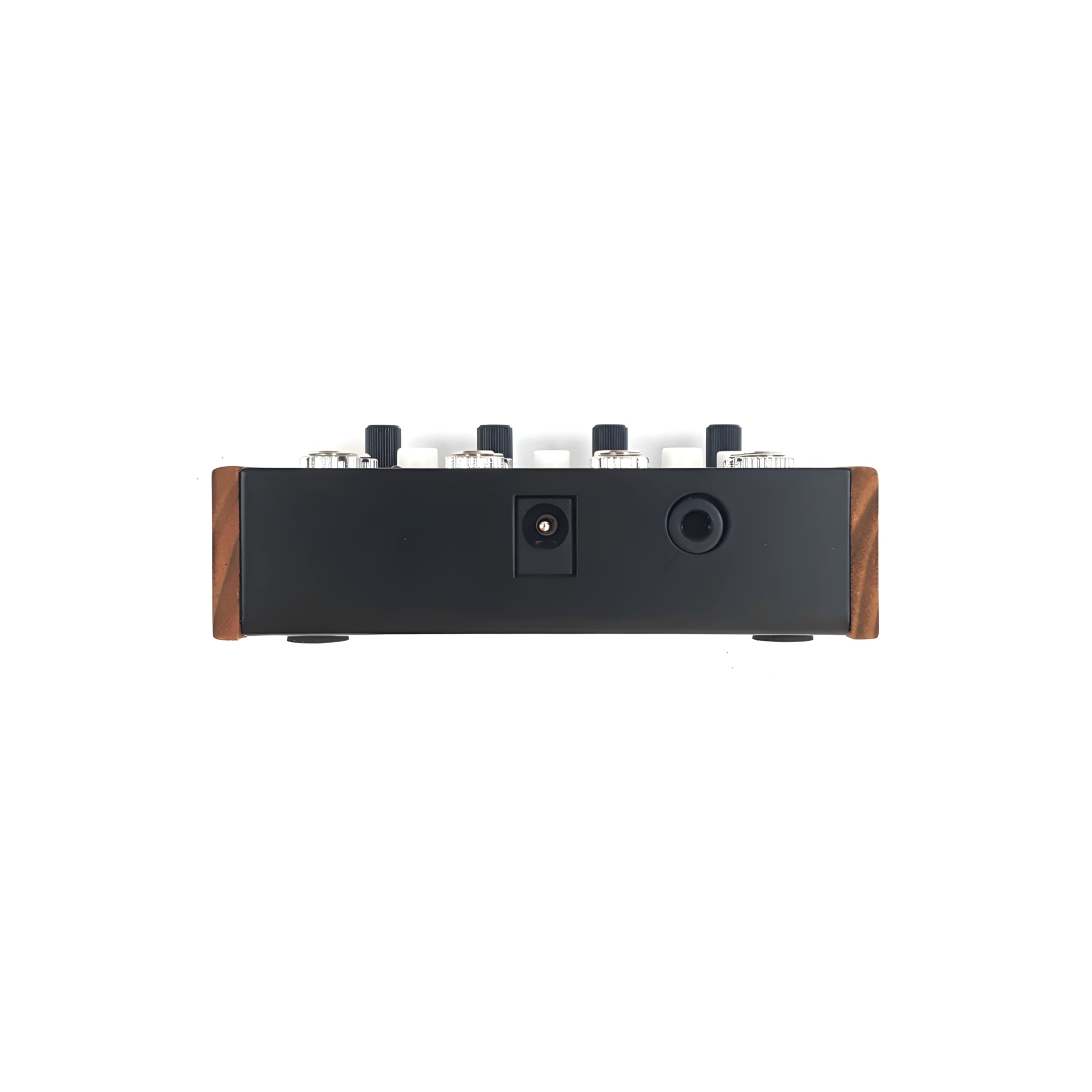

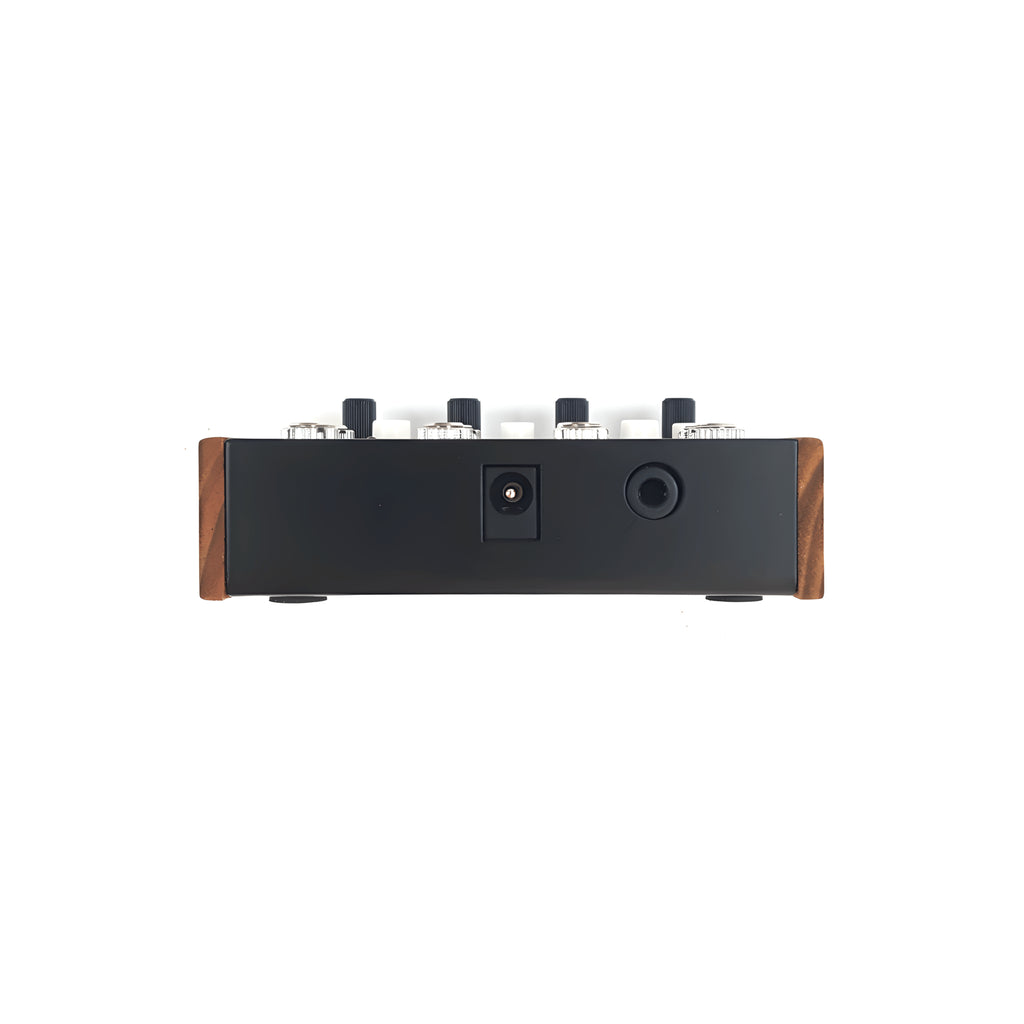

• IO: 4 x TS inputs (top); 1 x TRS input (back); 4 x TS outputs (top)
• CHANNELS 1-2: Signal boost; envelope followers; parallel/mix/split
• CHANNELS 3-4: Buffered attenuators; parallel/mix/split; DC-coupled
• CHANNEL 3: DC offset (enabled by DIP switch on PCB)
• POWER: DC 9V, centre-negative (standard guitar pedal PSU)
• DIMENSIONS: 83 mm x 75 mm x 31 mm
• WEIGHT: 156 g
